Example 16: Logic Trees for Uncertainty Quantification¶
PyStrata Logic Tree Implementation¶
PyStrata’s logic tree framework provides:
Hierarchical Structure: Nested nodes for complex dependency relationships
Conditional Dependencies: Parameter values that depend on other choices
Weight Normalization: Automatic handling of branch probability calculations
Result Aggregation: Statistical processing of ensemble results
Serialization Support: Save/load logic tree definitions in JSON format
Example Applications¶
This notebook covers several practical applications:
Basic Logic Tree Construction: Simple parameter variations
Conditional Dependencies: Soil properties that depend on soil type
Multi-Parameter Trees: Complex trees with multiple uncertain parameters
Site Response Integration: Running full site response analyses
Result Processing: Statistical analysis of ensemble predictions
Sensitivity Analysis: Identifying dominant uncertainty sources
Prerequisites: This example assumes familiarity with basic PyStrata concepts. If you’re new to PyStrata, start with Examples 1-3 for fundamental site response analysis concepts.
[1]:
import json
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pystrata
from pystrata.logic_tree import Alternative, LogicTree, Node
%matplotlib inline
plt.rcParams["figure.dpi"] = 120
1. Basic Logic Tree Concepts¶
A logic tree consists of nodes that represent uncertain parameters. Each node contains alternatives with associated weights and optional conditional dependencies.
[2]:
# Create a simple logic tree with three parameters
simple_tree = LogicTree(
[
# Site classification with equal weights
Node(
"site_class", [Alternative("C", weight=0.4), Alternative("D", weight=0.6)]
),
# Shear wave velocity uncertainty
Node(
"vs_factor",
[
Alternative(0.8, weight=0.2), # Lower bound
Alternative(1.0, weight=0.6), # Best estimate
Alternative(1.2, weight=0.2), # Upper bound
],
),
# Damping model choice
Node(
"damping_model",
[
Alternative("darendeli", weight=0.7),
Alternative("seed_idriss", weight=0.3),
],
),
]
)
print(f"Logic tree has {len(list(simple_tree))} valid branches")
# Display first few branches
for i, branch in enumerate(simple_tree):
if i < 5:
print(f"Branch {i + 1}: {branch.as_dict()}, weight: {branch.weight:.3f}")
Logic tree has 12 valid branches
Branch 1: {'site_class': 'C', 'vs_factor': 0.8, 'damping_model': 'darendeli'}, weight: 0.056
Branch 2: {'site_class': 'C', 'vs_factor': 0.8, 'damping_model': 'seed_idriss'}, weight: 0.024
Branch 3: {'site_class': 'C', 'vs_factor': 1.0, 'damping_model': 'darendeli'}, weight: 0.168
Branch 4: {'site_class': 'C', 'vs_factor': 1.0, 'damping_model': 'seed_idriss'}, weight: 0.072
Branch 5: {'site_class': 'C', 'vs_factor': 1.2, 'damping_model': 'darendeli'}, weight: 0.056
2. Conditional Dependencies¶
Logic trees can include conditional dependencies where certain alternatives are only valid given specific conditions.
[3]:
# Create a logic tree with conditional dependencies
conditional_tree = LogicTree(
[
# Soil type classification
Node(
"soil_type",
[Alternative("clay", weight=0.4), Alternative("sand", weight=0.6)],
),
# Plasticity index (only relevant for clay)
Node(
"plasticity_index",
[
Alternative("low", weight=0.3, requires={"soil_type": "clay"}),
Alternative("medium", weight=0.4, requires={"soil_type": "clay"}),
Alternative("high", weight=0.3, requires={"soil_type": "clay"}),
Alternative(
"not_applicable", weight=1.0, requires={"soil_type": "sand"}
),
],
),
# Relative density (only relevant for sand)
Node(
"relative_density",
[
Alternative("loose", weight=0.2, requires={"soil_type": "sand"}),
Alternative("medium", weight=0.6, requires={"soil_type": "sand"}),
Alternative("dense", weight=0.2, requires={"soil_type": "sand"}),
Alternative(
"not_applicable", weight=1.0, requires={"soil_type": "clay"}
),
],
),
# Nonlinear model selection with exclusions
Node(
"nonlinear_model",
[
Alternative("hyperbolic", weight=0.5),
Alternative(
"gq_h", weight=0.3, excludes={"soil_type": "clay"}
), # Only for sand
Alternative(
"pressurized", weight=0.2, requires={"soil_type": "clay"}
), # Only for clay
],
),
]
)
print(f"Conditional tree has {len(list(conditional_tree))} valid branches")
print("\nValid branches:")
for i, branch in enumerate(conditional_tree):
print(f"{i + 1:2d}: {branch.as_dict()}, weight: {branch.weight:.3f}")
Conditional tree has 12 valid branches
Valid branches:
1: {'soil_type': 'clay', 'plasticity_index': 'low', 'relative_density': 'not_applicable', 'nonlinear_model': 'hyperbolic'}, weight: 0.060
2: {'soil_type': 'clay', 'plasticity_index': 'low', 'relative_density': 'not_applicable', 'nonlinear_model': 'pressurized'}, weight: 0.024
3: {'soil_type': 'clay', 'plasticity_index': 'medium', 'relative_density': 'not_applicable', 'nonlinear_model': 'hyperbolic'}, weight: 0.080
4: {'soil_type': 'clay', 'plasticity_index': 'medium', 'relative_density': 'not_applicable', 'nonlinear_model': 'pressurized'}, weight: 0.032
5: {'soil_type': 'clay', 'plasticity_index': 'high', 'relative_density': 'not_applicable', 'nonlinear_model': 'hyperbolic'}, weight: 0.060
6: {'soil_type': 'clay', 'plasticity_index': 'high', 'relative_density': 'not_applicable', 'nonlinear_model': 'pressurized'}, weight: 0.024
7: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'loose', 'nonlinear_model': 'hyperbolic'}, weight: 0.060
8: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'loose', 'nonlinear_model': 'gq_h'}, weight: 0.036
9: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'medium', 'nonlinear_model': 'hyperbolic'}, weight: 0.180
10: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'medium', 'nonlinear_model': 'gq_h'}, weight: 0.108
11: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'dense', 'nonlinear_model': 'hyperbolic'}, weight: 0.060
12: {'soil_type': 'sand', 'plasticity_index': 'not_applicable', 'relative_density': 'dense', 'nonlinear_model': 'gq_h'}, weight: 0.036
3. Weight Analysis and Statistics¶
Analyze the distribution of weights across branches and parameters.
[4]:
# Collect branch data for analysis
branches_data = []
for branch in conditional_tree:
branch_dict = branch.as_dict()
branch_dict["weight"] = branch.weight
branches_data.append(branch_dict)
df = pd.DataFrame(branches_data)
print("Branch statistics:")
print(df.describe())
# Verify weights sum to 1
total_weight = df["weight"].sum()
print(f"\nTotal weight: {total_weight:.6f}")
# Marginal probabilities for each parameter
print("\nMarginal probabilities:")
for param in ["soil_type", "plasticity_index", "relative_density", "nonlinear_model"]:
marginal = df.groupby(param)["weight"].sum().sort_values(ascending=False)
print(f"\n{param}:")
for value, weight in marginal.items():
print(f" {value}: {weight:.3f}")
Branch statistics:
weight
count 12.000000
mean 0.063333
std 0.044209
min 0.024000
25% 0.035000
50% 0.060000
75% 0.065000
max 0.180000
Total weight: 0.760000
Marginal probabilities:
soil_type:
sand: 0.480
clay: 0.280
plasticity_index:
not_applicable: 0.480
medium: 0.112
low: 0.084
high: 0.084
relative_density:
medium: 0.288
not_applicable: 0.280
loose: 0.096
dense: 0.096
nonlinear_model:
hyperbolic: 0.500
gq_h: 0.180
pressurized: 0.080

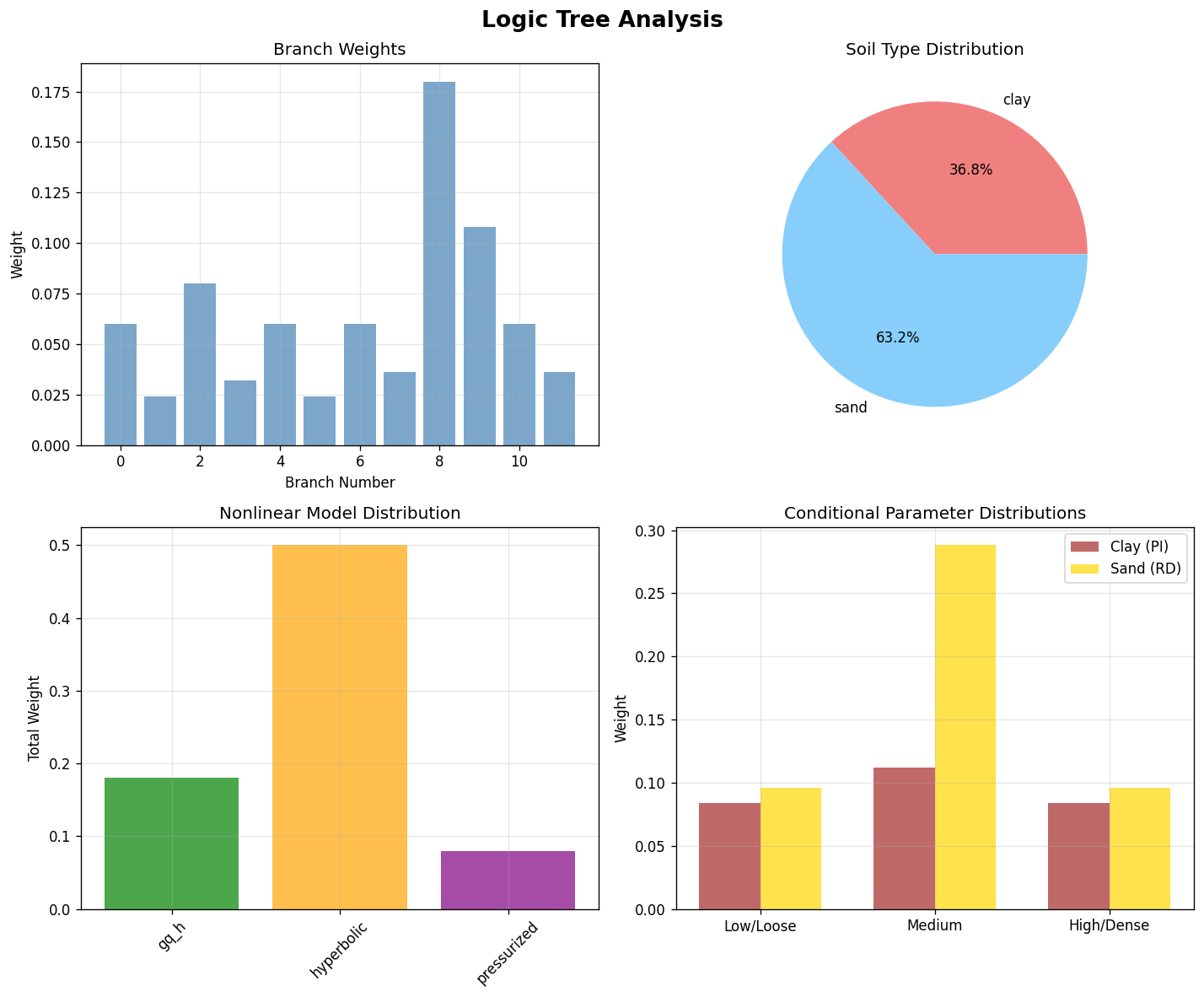

4. Visualization of Logic Tree Structure¶
[5]:
# Create visualization of branch weights and parameter distributions
fig, axes = plt.subplots(2, 2, figsize=(12, 10))
fig.suptitle("Logic Tree Analysis", fontsize=16, fontweight="bold")
# Branch weights distribution
axes[0, 0].bar(range(len(df)), df["weight"], alpha=0.7, color="steelblue")
axes[0, 0].set_xlabel("Branch Number")
axes[0, 0].set_ylabel("Weight")
axes[0, 0].set_title("Branch Weights")
axes[0, 0].grid(True, alpha=0.3)
# Soil type distribution
soil_weights = df.groupby("soil_type")["weight"].sum()
axes[0, 1].pie(
soil_weights.values,
labels=soil_weights.index,
autopct="%1.1f%%",
colors=["lightcoral", "lightskyblue"],
)
axes[0, 1].set_title("Soil Type Distribution")
# Nonlinear model distribution
model_weights = df.groupby("nonlinear_model")["weight"].sum()
bars = axes[1, 0].bar(
model_weights.index,
model_weights.values,
color=["green", "orange", "purple"],
alpha=0.7,
)
axes[1, 0].set_ylabel("Total Weight")
axes[1, 0].set_title("Nonlinear Model Distribution")
axes[1, 0].tick_params(axis="x", rotation=45)
axes[1, 0].grid(True, alpha=0.3)
# Conditional distributions
clay_data = df[df["soil_type"] == "clay"]
sand_data = df[df["soil_type"] == "sand"]
x_pos = np.arange(3)
clay_pi = (
clay_data.groupby("plasticity_index")["weight"]
.sum()
.reindex(["low", "medium", "high"], fill_value=0)
)
sand_rd = (
sand_data.groupby("relative_density")["weight"]
.sum()
.reindex(["loose", "medium", "dense"], fill_value=0)
)
width = 0.35
axes[1, 1].bar(
x_pos - width / 2,
clay_pi.values,
width,
label="Clay (PI)",
alpha=0.7,
color="brown",
)
axes[1, 1].bar(
x_pos + width / 2, sand_rd.values, width, label="Sand (RD)", alpha=0.7, color="gold"
)
axes[1, 1].set_xticks(x_pos)
axes[1, 1].set_xticklabels(["Low/Loose", "Medium", "High/Dense"])
axes[1, 1].set_ylabel("Weight")
axes[1, 1].set_title("Conditional Parameter Distributions")
axes[1, 1].legend()
axes[1, 1].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

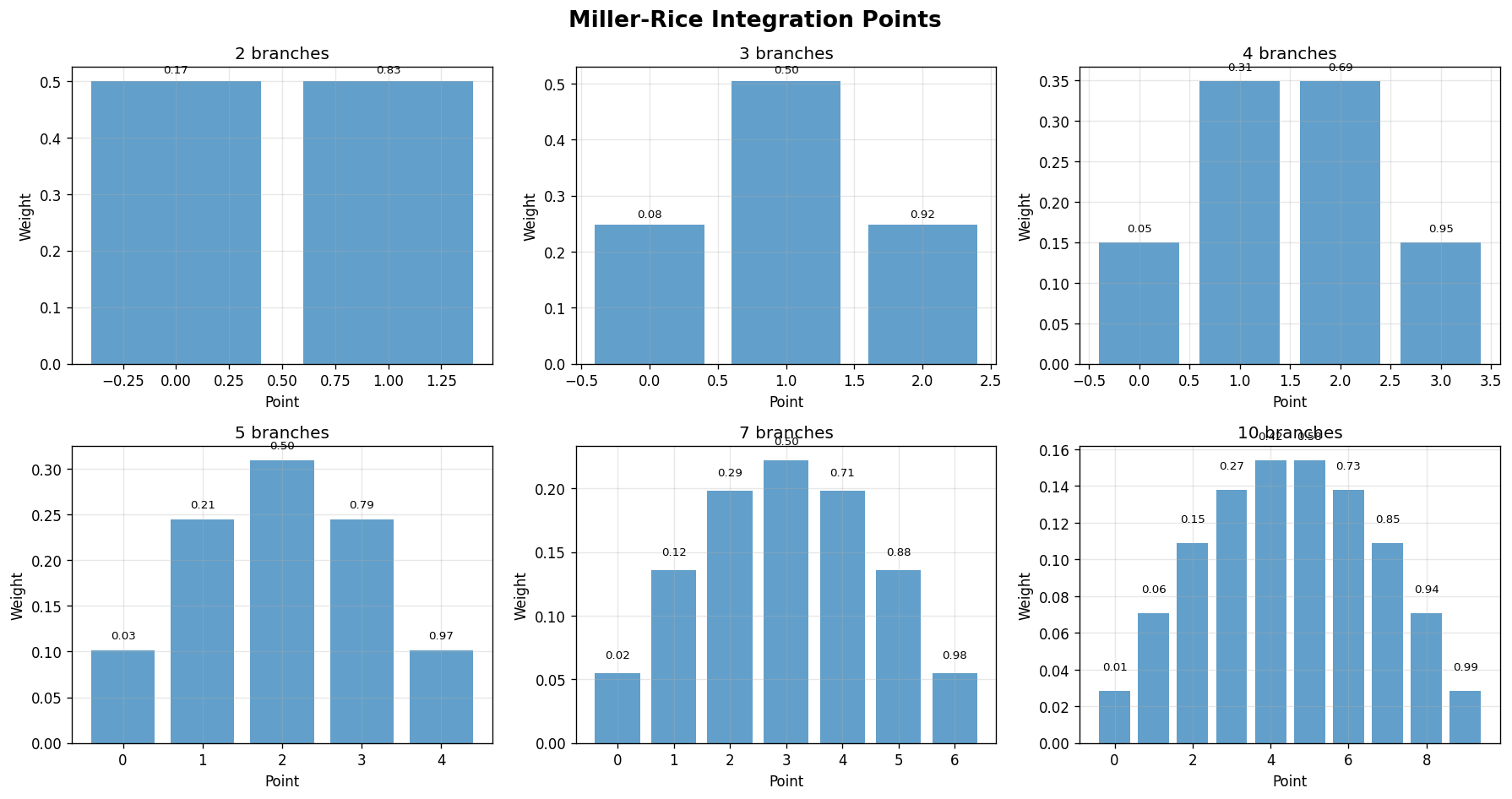

5. Miller-Rice Integration Points¶
PyStrata includes predefined integration points based on Miller and Rice (1983) for efficient numerical integration.
[6]:
# Create Miller-Rice nodes for different numbers of branches
fig, axes = plt.subplots(2, 3, figsize=(15, 8))
fig.suptitle("Miller-Rice Integration Points", fontsize=16, fontweight="bold")
branches_list = [2, 3, 4, 5, 7, 10]
for i, n_branches in enumerate(branches_list):
row = i // 3
col = i % 3
node = Node.from_miller_rice(f"param_{n_branches}", n_branches)
values = [alt.value for alt in node.alts]
weights = [alt.weight for alt in node.alts]
axes[row, col].bar(range(len(values)), weights, alpha=0.7)
axes[row, col].set_title(f"{n_branches} branches")
axes[row, col].set_xlabel("Point")
axes[row, col].set_ylabel("Weight")
axes[row, col].grid(True, alpha=0.3)
# Add value labels
for j, (val, wt) in enumerate(zip(values, weights)):
axes[row, col].text(
j, wt + 0.01, f"{val:.2f}", ha="center", va="bottom", fontsize=8
)
plt.tight_layout()
plt.show()
# Print the actual values and weights
print("Miller-Rice integration points:")
for n_branches in [3, 5, 7]:
node = Node.from_miller_rice(f"param_{n_branches}", n_branches)
print(f"\n{n_branches} points:")
for i, alt in enumerate(node.alts):
print(f" Point {i + 1}: value={alt.value:.6f}, weight={alt.weight:.6f}")
Miller-Rice integration points:
3 points:
Point 1: value=0.084669, weight=0.247614
Point 2: value=0.500000, weight=0.504771
Point 3: value=0.915331, weight=0.247614
5 points:
Point 1: value=0.034893, weight=0.101080
Point 2: value=0.211702, weight=0.244290
Point 3: value=0.500000, weight=0.309260
Point 4: value=0.788298, weight=0.244290
Point 5: value=0.965107, weight=0.101080
7 points:
Point 1: value=0.019106, weight=0.054866
Point 2: value=0.115498, weight=0.135893
Point 3: value=0.285336, weight=0.198097
Point 4: value=0.500000, weight=0.222288
Point 5: value=0.714664, weight=0.198097
Point 6: value=0.884502, weight=0.135893
Point 7: value=0.980894, weight=0.054866

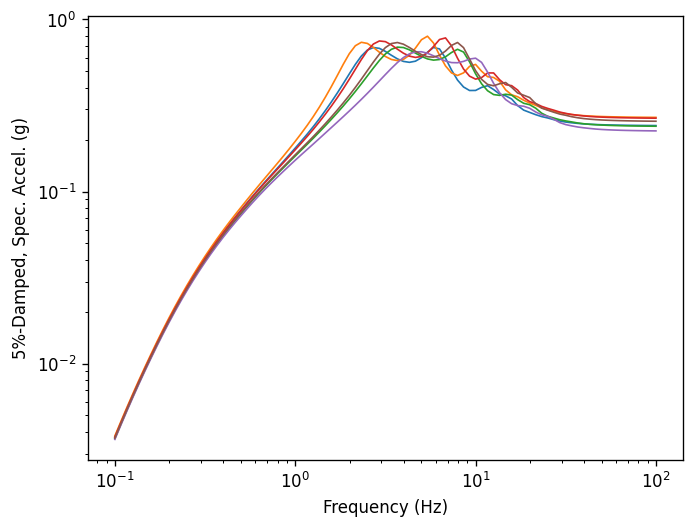

6. Application to Site Response Analysis¶
Demonstrate how to use logic trees with actual site response calculations.
[7]:
# Create a basic site profile
def create_site_profile(vs_factor=1.0, damping_model="darendeli"):
"""Create a site profile with variable parameters."""
# Define base soil properties
layers = [
pystrata.site.Layer(
pystrata.site.DarendeliSoilType(
name="Clay",
unit_wt=18.5 * 9.81,
plas_index=20,
stress_mean=(101.3 * 0.5),
)
if damping_model == "darendeli"
else pystrata.site.WangSoilType(
name="Clay",
unit_wt=18.5 * 9.81,
stress_mean=(101.3 * 0.5),
soil_group="clayey_soil",
),
thickness=10,
shear_vel=300 * vs_factor,
),
pystrata.site.Layer(
pystrata.site.DarendeliSoilType(
name="Sand", unit_wt=19.0 * 9.81, plas_index=0, stress_mean=(101.3 * 1)
)
if damping_model == "darendeli"
else pystrata.site.WangSoilType(
name="Sand",
unit_wt=19.0 * 9.81,
stress_mean=(101.3 * 1),
soil_group="clean_sand_and_gravel",
),
thickness=20,
shear_vel=500 * vs_factor,
),
# Bedrock
pystrata.site.Layer(
pystrata.site.SoilType(name="Rock", unit_wt=24.0 * 9.81, damping=0.01),
thickness=0,
shear_vel=800,
),
]
return pystrata.site.Profile(layers)
# Test the function
test_profile = create_site_profile()
print(f"Created profile with {len(test_profile)} layers")
for i, layer in enumerate(test_profile):
print(
f"Layer {i + 1}: {layer.soil_type.name}, Vs={layer.shear_vel:.0f} m/s, h={layer.thickness:.1f} m"
)
Created profile with 3 layers
Layer 1: Clay, Vs=300 m/s, h=10.0 m
Layer 2: Sand, Vs=500 m/s, h=20.0 m
Layer 3: Rock, Vs=800 m/s, h=0.0 m
[8]:
# Create a simple input motion
motion = pystrata.motion.SourceTheoryRvtMotion(magnitude=6.5, distance=20, region="wna")
# Define a logic tree for site response uncertainty
site_response_tree = LogicTree(
[
Node(
"vs_factor",
[
Alternative(0.8, weight=0.2),
Alternative(1.0, weight=0.6),
Alternative(1.2, weight=0.2),
],
),
Node(
"damping_model",
[
Alternative("darendeli", weight=0.7),
Alternative("wang", weight=0.3),
],
),
]
)
# Run site response calculation
calc = pystrata.propagation.EquivalentLinearCalculator()
# Output at surface
outputs = pystrata.output.OutputCollection(
[
pystrata.output.ResponseSpectrumOutput(
# Frequencies for response spectrum
freqs=np.logspace(-1, 2, 91),
location=pystrata.output.OutputLocation("outcrop", depth=0),
osc_damping=0.05,
),
]
)
print("Computing site response for each logic tree branch...")
for i, branch in enumerate(site_response_tree):
vs_factor = branch.value("vs_factor")
damping_model = branch.value("damping_model")
print(
f" Branch {i + 1}: vs_factor={vs_factor:.1f}, damping={damping_model}, weight={branch.weight:.1f}"
)
# Create profile for this branch
profile = create_site_profile(vs_factor, damping_model).auto_discretize()
calc(motion, profile, profile.location("outcrop", index=-1))
outputs(calc, name=branch)
Computing site response for each logic tree branch...
Branch 1: vs_factor=0.8, damping=darendeli, weight=0.1
Branch 2: vs_factor=0.8, damping=wang, weight=0.1
Branch 3: vs_factor=1.0, damping=darendeli, weight=0.4
Branch 2: vs_factor=0.8, damping=wang, weight=0.1
Branch 3: vs_factor=1.0, damping=darendeli, weight=0.4
Branch 4: vs_factor=1.0, damping=wang, weight=0.2
Branch 5: vs_factor=1.2, damping=darendeli, weight=0.1
Branch 4: vs_factor=1.0, damping=wang, weight=0.2
Branch 5: vs_factor=1.2, damping=darendeli, weight=0.1
Branch 6: vs_factor=1.2, damping=wang, weight=0.1
Branch 6: vs_factor=1.2, damping=wang, weight=0.1
[9]:
ax = outputs[0].plot()
# Remove legend
ax.legend().set_visible(False)
8. Loading Logic Trees from JSON¶
Logic trees can be saved and loaded from JSON files for reproducibility and sharing.
[10]:
# Create a complex logic tree definition
logic_tree_definition = [
{
"name": "site_classification",
"alts": [
{"value": "C", "weight": 0.3, "params": {"vs30_range": [360, 760]}},
{"value": "D", "weight": 0.6, "params": {"vs30_range": [180, 360]}},
{"value": "E", "weight": 0.1, "params": {"vs30_range": [0, 180]}},
],
},
{
"name": "kappa",
"alts": [
{"value": 0.02, "weight": 0.2, "requires": {"site_classification": "C"}},
{"value": 0.03, "weight": 0.6, "requires": {"site_classification": "C"}},
{"value": 0.04, "weight": 0.2, "requires": {"site_classification": "C"}},
{"value": 0.03, "weight": 0.2, "requires": {"site_classification": "D"}},
{"value": 0.04, "weight": 0.6, "requires": {"site_classification": "D"}},
{"value": 0.05, "weight": 0.2, "requires": {"site_classification": "D"}},
{"value": 0.05, "weight": 0.4, "requires": {"site_classification": "E"}},
{"value": 0.06, "weight": 0.6, "requires": {"site_classification": "E"}},
],
},
{
"name": "randomization_method",
"alts": [
{"value": "monte_carlo", "weight": 0.4, "params": {"n_realizations": 1000}},
{
"value": "latin_hypercube",
"weight": 0.4,
"params": {"n_realizations": 100},
},
{"value": "deterministic", "weight": 0.2, "params": {"n_realizations": 1}},
],
},
]
# Save to JSON file
json_filename = "site_response_logic_tree.json"
with open(json_filename, "w") as f:
json.dump(logic_tree_definition, f, indent=2)
print(f"Saved logic tree definition to {json_filename}")
# Load from JSON
loaded_tree = LogicTree.from_json(json_filename)
print(f"\nLoaded logic tree with {len(list(loaded_tree))} valid branches")
# Display the loaded tree structure
print("\nBranches from JSON logic tree:")
for i, branch in enumerate(loaded_tree):
branch_info = {
"site": branch.value("site_classification"),
"kappa": branch.value("kappa"),
"method": branch.value("randomization_method"),
"weight": branch.weight,
}
print(f" {i + 1:2d}: {branch_info}")
Saved logic tree definition to site_response_logic_tree.json
Loaded logic tree with 24 valid branches
Branches from JSON logic tree:
1: {'site': 'C', 'kappa': 0.02, 'method': 'monte_carlo', 'weight': np.float64(0.024)}
2: {'site': 'C', 'kappa': 0.02, 'method': 'latin_hypercube', 'weight': np.float64(0.024)}
3: {'site': 'C', 'kappa': 0.02, 'method': 'deterministic', 'weight': np.float64(0.012)}
4: {'site': 'C', 'kappa': 0.03, 'method': 'monte_carlo', 'weight': np.float64(0.072)}
5: {'site': 'C', 'kappa': 0.03, 'method': 'latin_hypercube', 'weight': np.float64(0.072)}
6: {'site': 'C', 'kappa': 0.03, 'method': 'deterministic', 'weight': np.float64(0.036)}
7: {'site': 'C', 'kappa': 0.04, 'method': 'monte_carlo', 'weight': np.float64(0.024)}
8: {'site': 'C', 'kappa': 0.04, 'method': 'latin_hypercube', 'weight': np.float64(0.024)}
9: {'site': 'C', 'kappa': 0.04, 'method': 'deterministic', 'weight': np.float64(0.012)}
10: {'site': 'D', 'kappa': 0.03, 'method': 'monte_carlo', 'weight': np.float64(0.144)}
11: {'site': 'D', 'kappa': 0.03, 'method': 'latin_hypercube', 'weight': np.float64(0.144)}
12: {'site': 'D', 'kappa': 0.03, 'method': 'deterministic', 'weight': np.float64(0.072)}
13: {'site': 'D', 'kappa': 0.04, 'method': 'monte_carlo', 'weight': np.float64(0.048)}
14: {'site': 'D', 'kappa': 0.04, 'method': 'latin_hypercube', 'weight': np.float64(0.048)}
15: {'site': 'D', 'kappa': 0.04, 'method': 'deterministic', 'weight': np.float64(0.024)}
16: {'site': 'D', 'kappa': 0.05, 'method': 'monte_carlo', 'weight': np.float64(0.048)}
17: {'site': 'D', 'kappa': 0.05, 'method': 'latin_hypercube', 'weight': np.float64(0.048)}
18: {'site': 'D', 'kappa': 0.05, 'method': 'deterministic', 'weight': np.float64(0.024)}
19: {'site': 'E', 'kappa': 0.05, 'method': 'monte_carlo', 'weight': np.float64(0.008000000000000002)}
20: {'site': 'E', 'kappa': 0.05, 'method': 'latin_hypercube', 'weight': np.float64(0.008000000000000002)}
21: {'site': 'E', 'kappa': 0.05, 'method': 'deterministic', 'weight': np.float64(0.004000000000000001)}
22: {'site': 'E', 'kappa': 0.06, 'method': 'monte_carlo', 'weight': np.float64(0.024)}
23: {'site': 'E', 'kappa': 0.06, 'method': 'latin_hypercube', 'weight': np.float64(0.024)}
24: {'site': 'E', 'kappa': 0.06, 'method': 'deterministic', 'weight': np.float64(0.012)}
